Ø 59

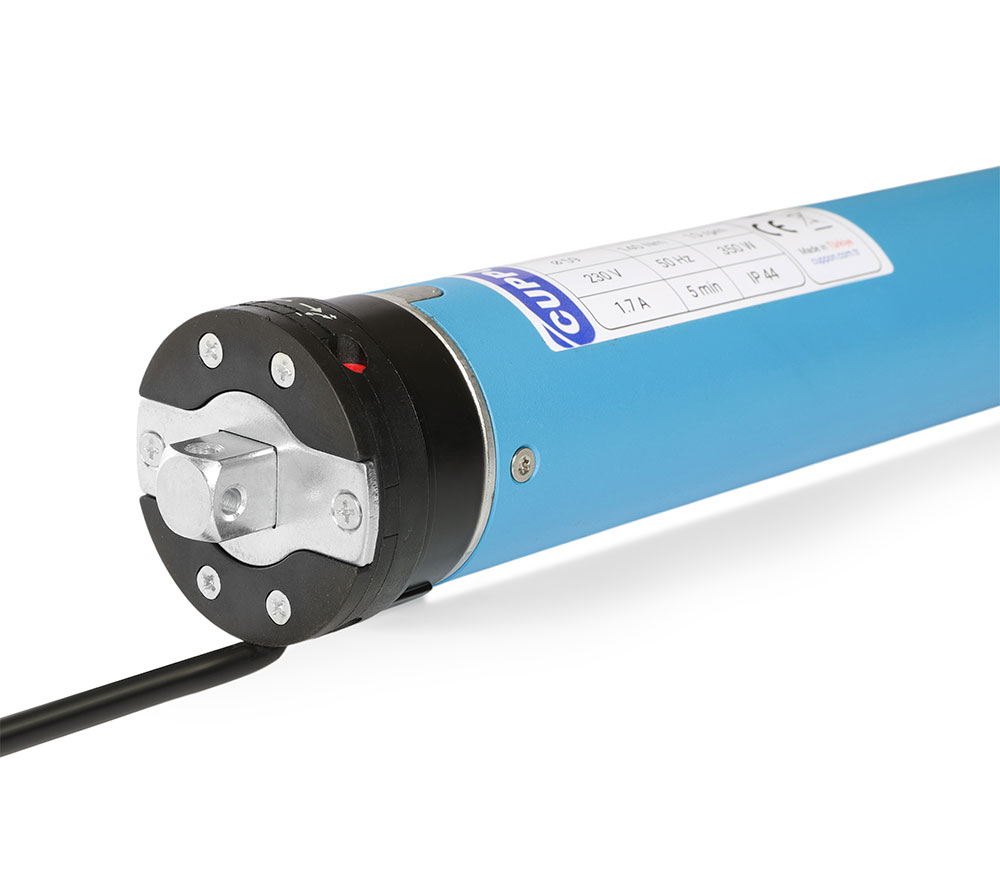

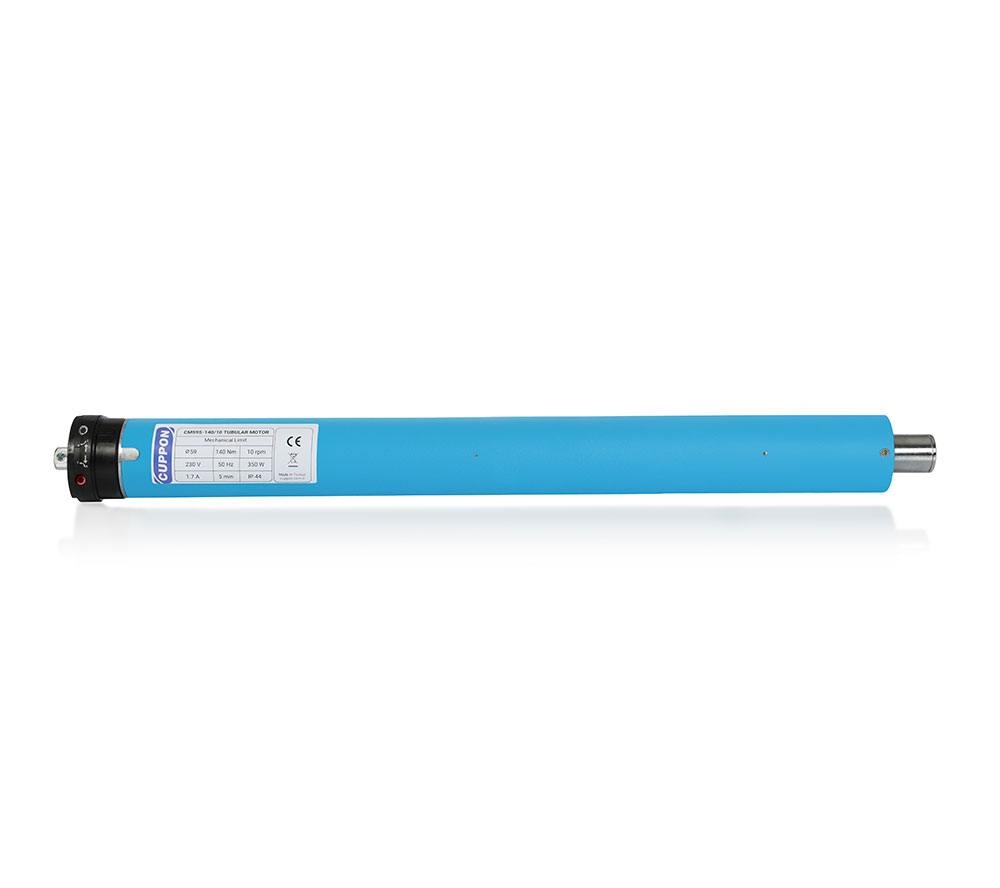

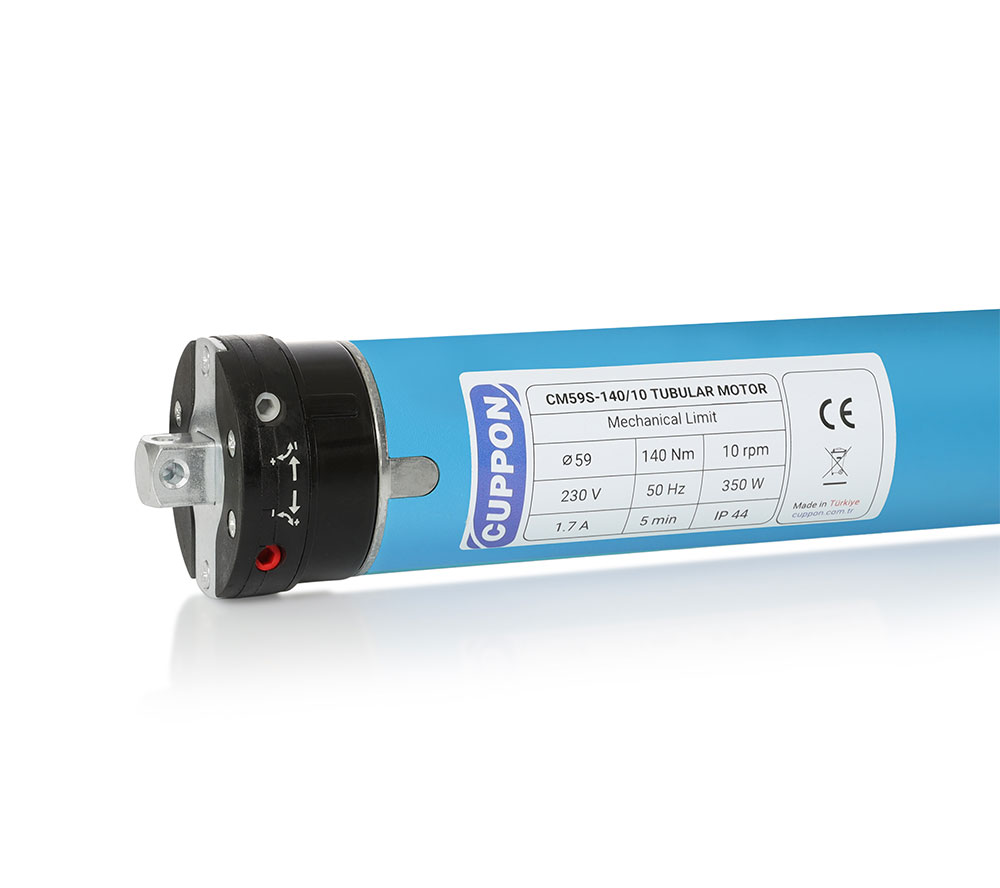

S: Tubular Motor with Mechanical Limit Head
Power and Durability Combined!
It is a high capacity motor solution developed for industrial and commercial areas. Guaranteeing trouble-free operation in large and heavy bioclimatic systems, this motor provides long-term reliability thanks to its durable construction. It makes a difference with its powerful performance whenever you need it and lightens your workload.
User Manual
Technical Specifications
| MOTOR TYPE | OPERATING VOLTAGE | RATED TORQUE | RATED SPEED | TUBE DIAMETER | RATED POWER INPUT | RATED CURRENT | OPERATING TIME | MAX. NUMBER OF TURNS | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 59S-120/10 | 230V/50 Hz | 120 N.m | 10 rpm | 59 mm | 365W | 1.6 A | 4 min. | 24 Turns | 5 kg |
