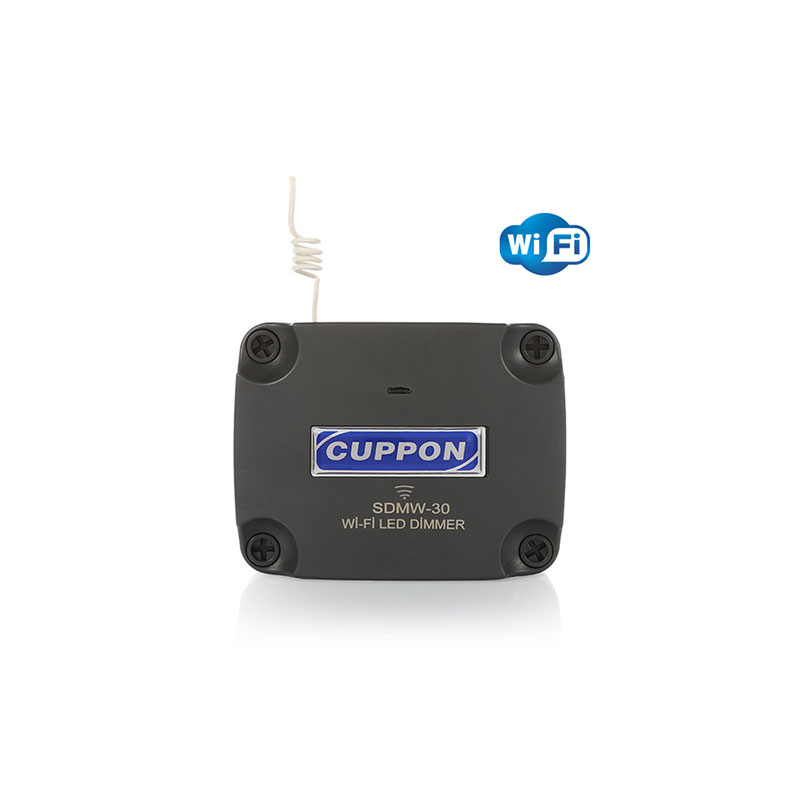

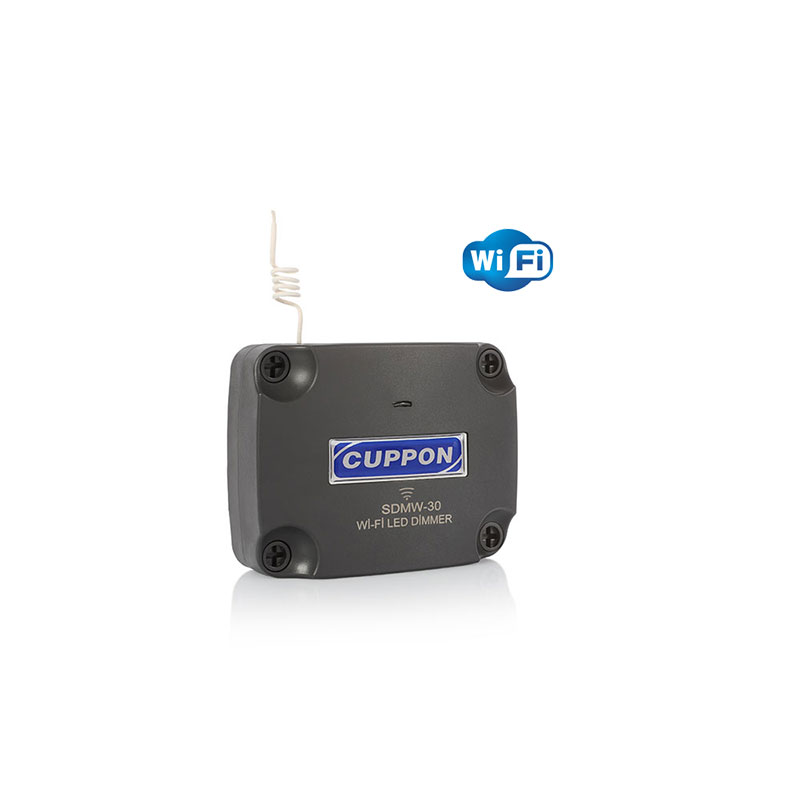

SDMW-30 Led Dimmer

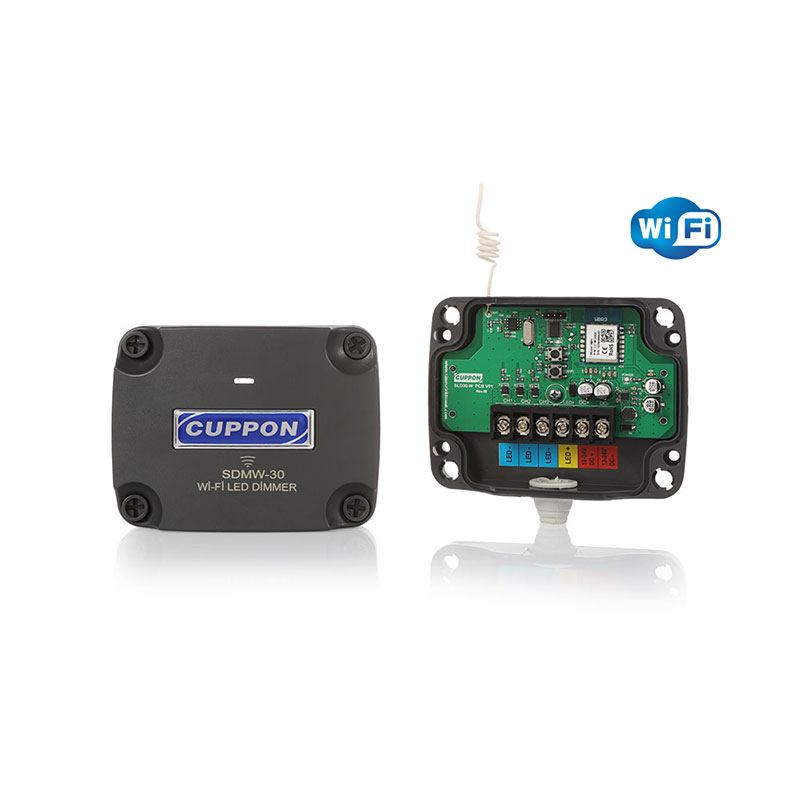

Connect 12/24V DC power to the supply terminals of the dimmer card as shown in the diagram, paying attention to the positive and negative poles. The dimmer receiver has 3 channels. Each channel can handle a maximum of 10 amperes.A total load of 30 amperes can be connected to the dimmer receiver.The positive (+) terminals of the LEDs are common, while the negative (-) terminals can be connected through different channels.

Operating Voltage: 12-24V DC

Number of Channels: 3 Channels

Channel Output: 12-24V DC

Frequency: 433.92 MHz

Output Power: 360W

Usage Area: Automation

Exterior Appearance: Polyester, grey color

Dimensions: 110 x 84 x 35 mm

Wi-Fi Interface: IEEE 802.11 b/g/n

Data Rate: 11b: 1, 2, 5.5, 11 (Mbps) 11g: 6, 9, 12, 18, 24, 36, 48, 54 (Mbps) 11n: HT20 MCS 0 - 7 11n: HT40 MCS 0 – 7

Encryption Algorithm: WEP/WPA/WPA2/WPA2 PSK (AES)

Operating Frequency: 2.400 to 2.4835 GHz
